Press bending machine VARIOBEND

More Information

Our bending press is a horizontal press. It is manufactured with tight tolerances and therefore achieves maximum reproducibility. The positioning accuracy is between ±0.03 mm and ±0.05 mm.

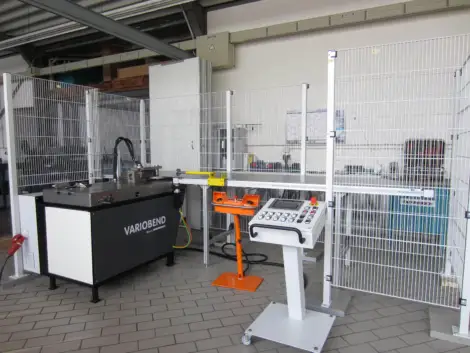

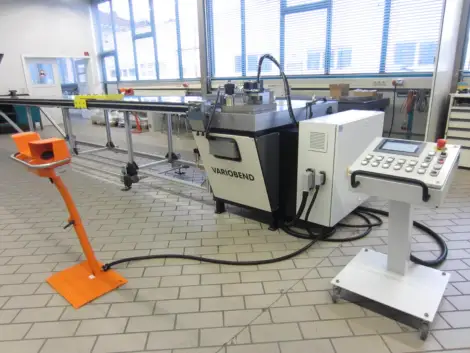

Indumasch variobend Indumasch variobend IMG 0150 Indumasch variobend IMG 1108 Indumasch variobend IMG 0672

The technology of the VARIOBEND press bender

The stroke can be adjusted by handwheel or programmed using a SIEMENS PLC control. The SIEMENS control system is an open control system that allows several machine functions to be programmed so that it can be used for compression moulding, bending, straightening, tube bending, punching, cutting, etc., depending on the application.

Our expertise gained over decades lies in the development of special bending and punching tools, which are used on our bending presses. Whether in the production of machines with special tools for the aviation industry, the manufacture of handles in the furniture industry, the production of copper welding gun electrodes, specially shaped assembly irons for tunnelling or clamping rings for pressure cookers, special straightening systems for profiles in vehicle construction... an almost inexhaustible field of applications lies behind or ahead of us.

The variable bending press from INDUMASCH with a pressure capacity of 30 tonnes and a stroke of 300 mm is characterised by its stable design. The machine table has a clear, open design and is therefore suitable for the installation of standard or special tools. This bending press also has a special feature: the bending cylinder can be variably adjusted above or below the work table.

Technical data

  • 300 kN capacity
  • Bending capacity: e.g. 150 x 15 mm sheet steel
  • 300 mm stroke on the x-axis
  • The position of the working cylinder is variable
  • Machine dimensions: L 1360 x W 650 mm 950 mm Working height
  • 900 kg Machine weight
  • 4.0 Kw Hydraulic drive
  • 400 V, 50 Hz Electrical connection
Production of profile bending machines - measurement

Video: Indumasch universal bending machines

Bending machine and application training

The decision in favour of an INDUMASCH machine is a decision in favour of state-of-the-art technology and high quality.

To ensure that all the advantages and technical possibilities of the bending machines can be utilised quickly and to their full extent, the operators are trained to become real experts within a very short time as part of professional training courses - so nothing stands in the way of efficient work with optimum production results!

Both in-house training courses, which are carried out directly on the new machine, and training courses in the INDUMASCH test workshop can be organised. The latter is ideal for training employees in advance so that they are already familiar with the INDUMASCH solution on the day of commissioning.

IMPORTANT for existing customers: New projects or staff changes mean a lack/loss of KNOW-HOW. This costs productivity and efficiency is lost. Production results leave a lot to be desired. DON'T LET IT GET THIS FAR. Request a free and non-binding retraining offer for your employees now. Our bending experts will keep you up to date.

Please feel free to contact us

Ralf Wagener and Thomas Büdenbender

Brochure: Indumasch universal bending machines

Detailed information on Indumasch press brakes in handy A4 format. We will be happy to send it to you by post on request.
